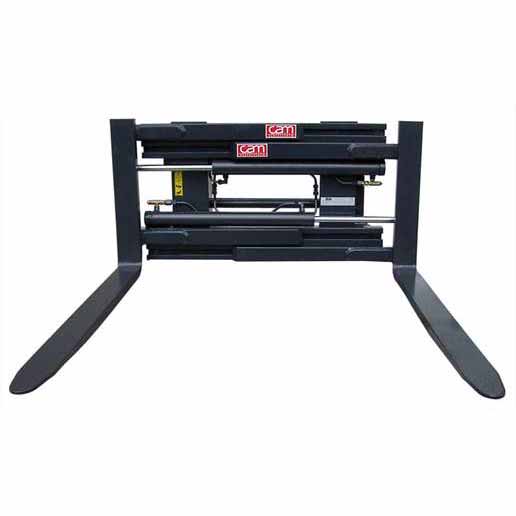

Вилочные захваты
Спецификация
|
• 2 гидравлических функции
• Максимальное давление: 180 бар • Рекомендуемый поток масла: 25 л/мин |
• Приваренные вилы
• C–Минимальная ширина каретки погрузчика • Интегрированная каретка бокового сдвига-в комплекте |
|
Модель |
Г./под. Вилы |
Г./под. захвата |

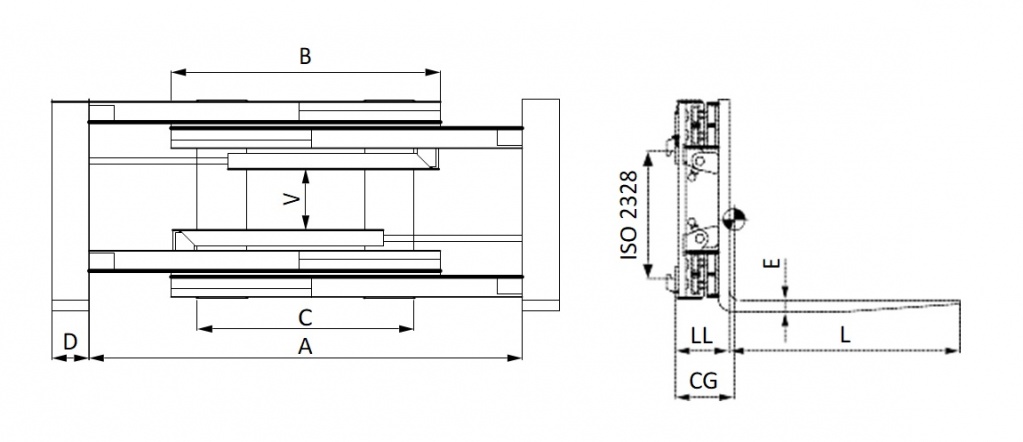

A |
B |
Вилы LxDxE |
C |
V |
LL |
HCG |
VCG |
Bec |
ISO2328 |
|
кг/мм |
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
HF10-A0T-10 |
1600/500 |
1000/500 |
450/1610 |
870 |
1000x100x35 |
750 |
195 |
180 |
192 |
175 |
296 |
2 |
|
HF10-A0T-12 |
1600/500 |
1000/500 |
450/1610 |
870 |
1200x100x35 |
750 |
195 |
180 |
202 |
175 |
306 |
2 |
|
HF10-B0T-10* |
1600/500 |
1000/500 |
360/1500 |
950 |
1000x100x35 |
750 |
195 |
180 |
190 |
175 |
306 |
2 |
|
HF10-B0T-12* |
1600/500 |
1000/500 |
360/1500 |
950 |
1200x100x35 |
750 |
195 |
180 |
200 |
175 |
316 |
2 |
|
HF10-C0T-10* |
1600/500 |
1000/500 |
360/1600 |
1050 |
1000x100x35 |
750 |
195 |
180 |
195 |
175 |
316 |
2 |
|
HF10-C0T-12* |
1600/500 |
1000/500 |
360/1600 |
1050 |
1200x100x35 |
750 |
195 |
180 |
205 |
175 |
326 |
2 |
|
HF14-A0T-10 |
2000/500 |
1400/500 |
450/1610 |
870 |
1000x100x40 |
750 |
195 |
180 |
195 |
165 |
317 |
2 |
|
HF14-A0T-12 |
2000/500 |
1400/500 |
450/1610 |
870 |
1200x100x40 |
750 |
195 |
180 |
205 |
165 |
327 |
2 |
|
HF14-B0T-10 |
2000/500 |
1400/500 |
450/1690 |
950 |
1000x100x40 |
750 |
195 |
180 |
193 |
165 |
322 |
2 |
|
HF14-B0T-12 |
2000/500 |
1400/500 |
450/1690 |
950 |
1200x100x40 |
750 |
195 |
180 |
203 |
165 |
332 |
2 |
|
HF14-C0T-10* |
2000/500 |
1400/500 |
360/1600 |
1050 |
1000x100x40 |
750 |
195 |
180 |
191 |
165 |
336 |
2 |
|
HF14-C0T-12* |
2000/500 |
1400/500 |
360/1600 |
1050 |
1200x100x40 |
750 |
195 |
180 |
201 |
165 |
346 |
2 |
|
HF14-D0T-10 |
2000/500 |
1400/500 |
550/1980 |
1150 |
1000x100x40 |
750 |
195 |
180 |
189 |
165 |
345 |
2 |
|
HF14-D0T-12 |
2000/500 |
1400/500 |
550/1980 |
1150 |
1200x100x40 |
750 |
195 |
180 |
198 |
165 |
354 |
2 |
|
HF18-A0T-10 |
2300/500 |
1800/500 |
480/1700 |
950 |
1000x100x40 |
750 |
185 |
185 |
205 |
165 |
333 |
2 |
|
HF18-A0T-12 |
2300/500 |
1800/500 |
480/1700 |
950 |
1200x100x40 |
750 |
185 |
185 |
220 |
165 |
343 |
2 |
|
HF18-B0T-10* |
2300/500 |
1800/500 |
360/1580 |
1050 |
1000x100x40 |
750 |
185 |
185 |
185 |
165 |
340 |
2 |
|
HF18-B0T-12* |
2300/500 |
1800/500 |
360/1580 |
1050 |
1200x100x40 |
750 |
185 |
185 |
210 |
165 |
350 |
2 |
|
HF18-B1T-10 |
2300/500 |
1800/500 |
480/1800 |
1050 |
1000x100x40 |
750 |
185 |
185 |
186 |
165 |
343 |
2 |
|
HF18-B1T-12 |
2300/500 |
1800/500 |
480/1800 |
1050 |
1200x100x40 |
750 |
185 |
185 |
211 |
165 |
353 |
2 |
|
HF18-C0T-10 |
2300/500 |
1800/500 |
480/1900 |
1150 |
1000x100x40 |
750 |
185 |
185 |
180 |
165 |
348 |
2 |
|
HF18-C0T-12 |
2300/500 |
1800/500 |
480/1900 |
1150 |
1200x100x40 |
750 |
185 |
185 |
205 |
165 |
358 |
2 |
|
HF18-D0T-10* |
2300/500 |
1800/500 |
360/1780 |
1250 |
1000x100x40 |
850 |
185 |
185 |
178 |
165 |
355 |
2 |
|
HF18-D0T-12* |
2300/500 |
1800/500 |
360/1780 |
1250 |
1200x100x40 |
850 |
185 |
185 |
203 |
165 |
365 |
2 |
|
HF22-A0T-10 |
2500/500 |
2200/500 |
430/1660 |
950 |
1000x120x40 |
750 |
180 |
185 |
205 |
162 |
371 |
2/3 |
|
HF22-A0T-12 |
2500/500 |
2200/500 |
430/1660 |
950 |
1200x120x40 |
750 |
180 |
185 |
230 |
162 |
381 |
2/3 |
|
HF22-B1T-10* |
2500/500 |
2200/500 |
320/1540 |
1050 |
1000x120x40 |
750 |
180 |
185 |
205 |
162 |
376 |
2/3 |
|
HF22-B1T-12* |
2500/500 |
2200/500 |
320/1540 |
1050 |
1200x120x40 |
750 |
180 |
185 |
230 |
162 |
386 |
2/3 |
|
HF22-C0T-10 |
2500/500 |
2200/500 |
450/1900 |
1150 |
1000x120x40 |
750 |
180 |
185 |
205 |
162 |
390 |
2/3 |
|
HF22-C0T-12 |
2500/500 |
2200/500 |
450/1900 |
1150 |
1200x120x40 |
750 |
180 |
185 |
230 |
162 |
400 |
2/3 |
|
HF22-D1T-10* |
2500/500 |
2200/500 |
320/1740 |
1250 |
1000x120x40 |
850 |
180 |
185 |
205 |
162 |
395 |
2/3 |
|
HF22-D1T-12* |
2500/500 |
2200/500 |
320/1740 |
1250 |
1200x120x40 |
850 |
180 |
185 |
230 |
162 |
405 |
2/3 |
|
HF26-A0T-10 |
3200/500 |
2600/500 |
450/1800 |
1050 |
1000x120x45 |
850 |
180 |
190 |
200 |
175 |
388 |
3 |
|
HF26-A0T-12 |
3200/500 |
2600/500 |
450/1800 |
1050 |
1200x120x45 |
850 |
180 |
190 |
225 |
175 |
399 |
3 |
|
HF26-B1T-10* |
3200/500 |
2600/500 |
320/1640 |
1150 |
1000x120x45 |
850 |
180 |
190 |
195 |
175 |
396 |
3 |
