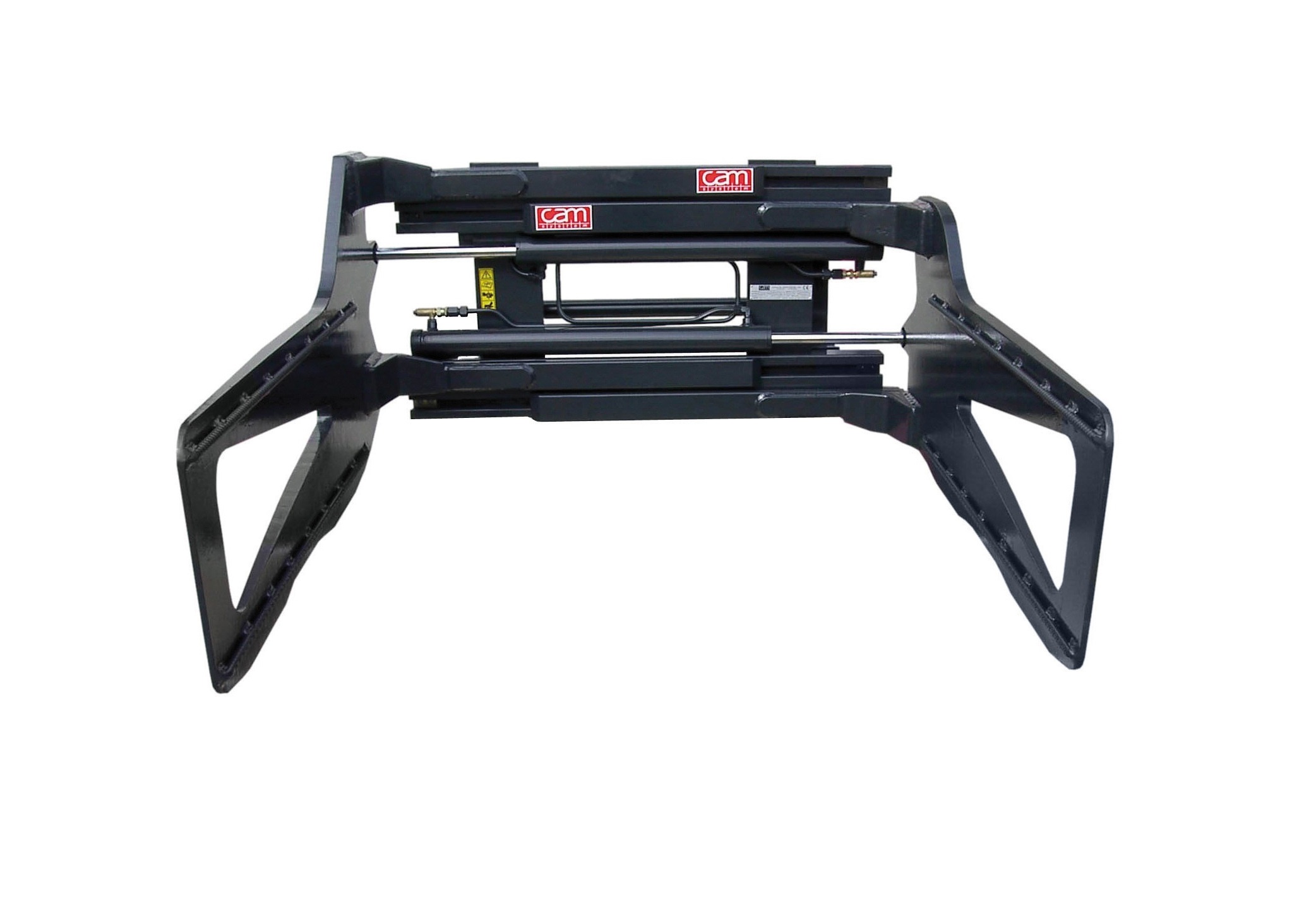

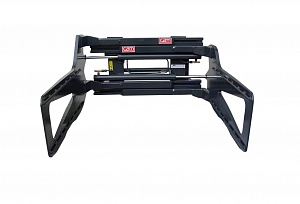

Киповый (тюковый) захват с вращением 360 градусов
Спецификация
|
• Захваты могут так же использоваться для кип целлюлозы • Рекомендуемый поток масла: 25л/мин

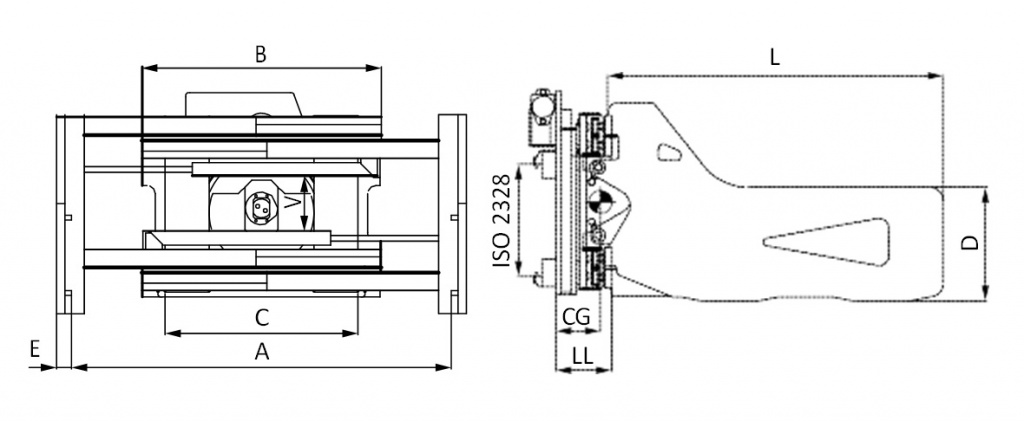

• 2 гидравлические функции • C- Минимальная ширина каретки погрузчика • Максимальноедавление:180бар |
|
Модель |
Г./под. |
A* |
B |
ЛапыLxDxE |
C |
V |
LL |
HCG |
VCG |
Bec |
ISO2328 |
|
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
HBR10-A0-09 |
1000/500 |
450/1590 |
950 |
900x400x25 |
750 |
195 |
270 |
226 |
325 |
545 |
2 |
|
HBR10-A0-10 |
1000/500 |
450/1590 |
950 |
1000x400x25 |
750 |
195 |
270 |
235 |
325 |
565 |
2 |
|
HBR10-A1-09 |
1000/500 |
550/1790 |
950 |
900x400x25 |
750 |
195 |
270 |
227 |
325 |
550 |
2 |
|
HBR10-A1-10 |
1000/500 |
550/1790 |
950 |
1000x400x25 |
750 |
195 |
270 |
237 |
325 |
570 |
2 |
|
HBR14-A0-09 |
1400/500 |
550/1790 |
950 |
900x400x25 |
750 |
195 |
270 |
225 |
325 |
551 |
2 |
|
HBR14-A0-10 |
1400/500 |
550/1790 |
950 |
1000x400x25 |
750 |
195 |
270 |
234 |
325 |
572 |
2 |
|
HBR14-B0-09 |
1400/500 |
450/1690 |
1050 |
900x400x25 |
750 |
195 |
270 |
237 |
325 |
559 |
2 |
|
HBR14-B0-10 |
1400/500 |
450/1690 |
1050 |
1000x400x25 |
750 |
195 |
270 |
246 |
325 |
580 |
2 |
|
HBR14-C0-09 |
1400/500 |
450/1790 |
1150 |
900x400x25 |
750 |
195 |
270 |
239 |
325 |
562 |
2 |
|
HBR14-C0-10 |
1400/500 |
450/1790 |
1150 |
1000x400x25 |
750 |
195 |
270 |
249 |
325 |
586 |
2 |
|
HBR14-C1-09 |
1400/500 |
650/2190 |
1150 |
900x400x25 |
750 |
195 |
270 |
235 |
325 |
558 |
2 |
|
HBR14-C1-10 |
1400/500 |
650/2190 |
1150 |
1000x400x25 |
750 |
195 |
270 |
244 |
325 |
584 |
2 |
|
HBR18-A0-10 |
1800/500 |
560/1780 |
950 |
1000x400x30 |
750 |
185 |
272 |
233 |
328 |
647 |
2 |
|
HBR18-A0-12 |
1800/500 |
560/1780 |
950 |
1200x400x30 |
750 |
185 |
272 |
244 |
328 |
660 |
2 |
|
HBR18-B0-10 |
1800/500 |
450/1680 |
1050 |
1000x400x30 |
750 |
185 |
272 |
236 |
328 |
661 |
2 |
|
HBR18-B0-12 |
1800/500 |
450/1680 |
1050 |
1200x400x30 |
750 |
185 |
272 |
247 |
328 |
670 |
2 |
|
HBR18-C0-10 |
1800/500 |
560/1980 |
1150 |
1000x400x30 |
750 |
185 |
272 |
237 |
328 |
679 |
2 |
|
HBR18-C0-12 |
1800/500 |
560/1980 |
1150 |
1200x400x30 |
750 |
185 |
272 |
248 |
328 |
689 |
2 |
|
HBR18-D0-10 |
1800/500 |
460/1880 |
1250 |
1000x400x30 |
750 |
185 |
272 |
239 |
328 |
699 |
2 |
|
HBR18-D0-12 |
1800/500 |
460/1880 |
1250 |
1200x400x30 |
750 |
185 |
272 |
251 |
328 |
713 |
2 |
|
HBR22-A0-10 |
2200/500 |
570/1800 |
950 |
1000x400x30 |
750 |
180 |
272 |
251 |
330 |
586 |
2 |
|
HBR22-A0-12 |
2200/500 |
570/1800 |
950 |
1200x400x30 |
750 |
180 |
272 |
262 |
330 |
597 |
2 |
|
HBR22-B0-10 |
2200/500 |
660/2080 |
1050 |
1000x400x30 |
750 |
180 |
272 |
258 |
330 |
608 |
2 |
|
HBR22-B0-12 |
2200/500 |
660/2080 |
1050 |
1200x400x30 |
750 |
180 |
272 |
269 |
330 |
618 |
2 |
|
HBR22-C0-10 |
2200/500 |
560/1980 |
1150 |
1000x400x30 |
750 |
180 |
272 |
263 |
330 |
614 |
2 |
|
HBR22-C0-12 |
2200/500 |
560/1980 |
1150 |
1200x400x30 |
750 |
180 |
272 |
273 |
330 |
625 |
2 |
|
HBR22-D0-10 |
2200/500 |
570/2100 |
1250 |
1000x400x30 |
750 |
180 |
272 |
265 |
330 |
635 |
2 |
|
HBR22-D0-12 |
2200/500 |
570/2100 |
1250 |
1200x400x30 |
750 |
180 |
272 |
276 |
330 |
652 |
2 |
|
HBR26-A0-10 |
2600/500 |
550/1860 |
1050 |
1000x400x35 |
900 |
180 |
275 |
254 |
335 |
655 |
2/3 |
|
HBR26-A0-12 |
2600/500 |
550/1860 |
1050 |
1200x400x35 |
900 |
180 |
275 |
266 |
335 |
687 |
2/3 |
|
HBR26-B0-10 |
2600/500 |
670/2200 |
1150 |
1000x400x35 |
900 |
180 |
275 |
262 |
335 |
664 |
2/3 |
|
HBR26-B0-12 |
2600/500 |
670/2200 |
1150 |
1200x400x35 |
900 |
180 |
275 |
273 |
335 |
696 |
2/3 |
|
HBR26-C0-10 |
2600/500 |
530/2020 |
1250 |
1000x400x35 |
900 |
180 |
275 |
266 |
335 |
674 |
2/3 |
|
HBR26-C0-12 |
2600/500 |
530/2020 |
1250 |
1200x400x35 |
900 |
180 |
275 |
276 |
335 |
705 |
2/3 |
|
HBR26-D0-10 |
2600/500 |
670/2320 |
1320 |
1000x400x35 |
900 |
180 |
275 |
269 |
335 |
683 |
2/3 |
