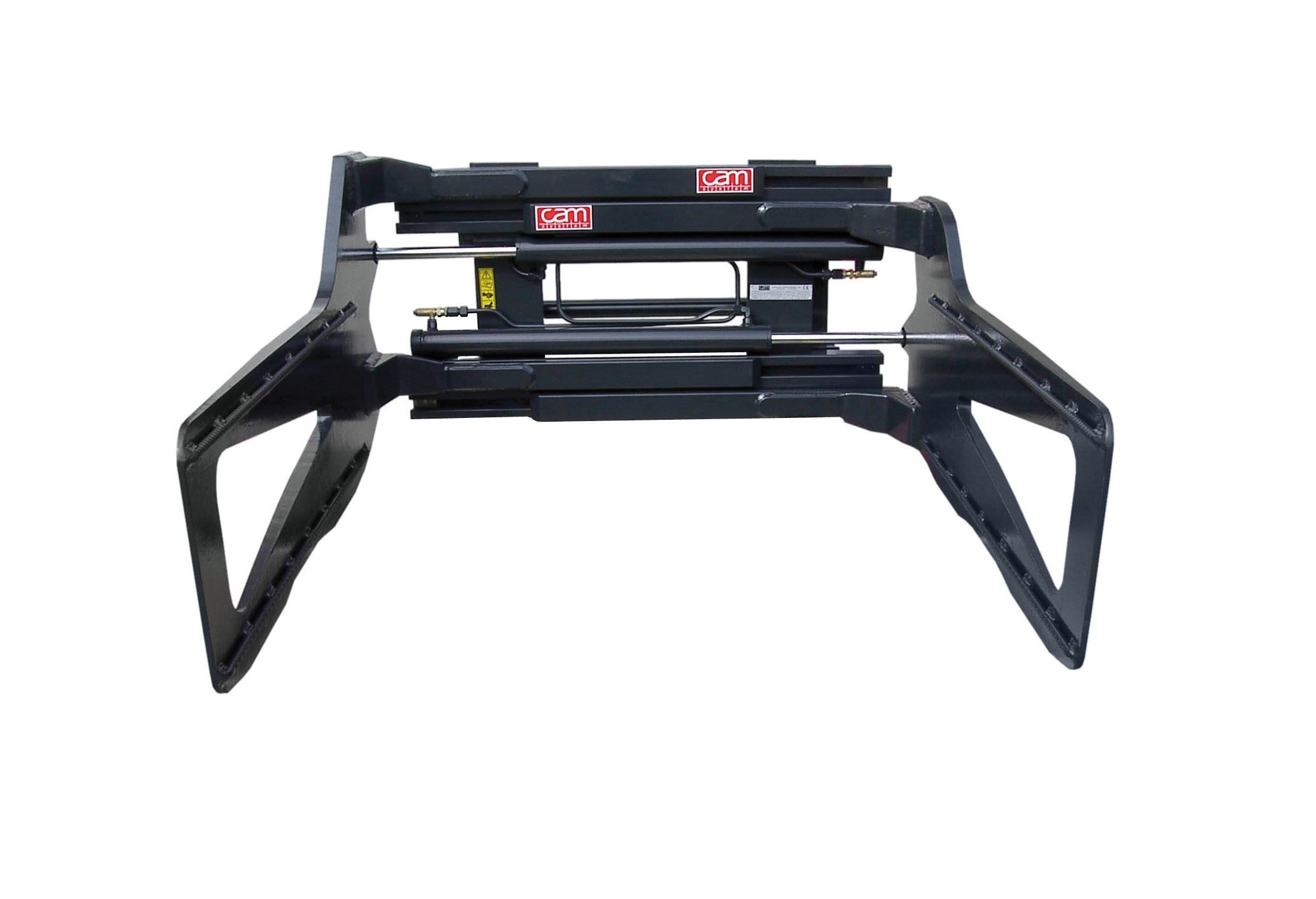

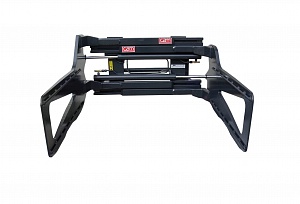

Киповый (тюковый) захват
Спецификация
|
• Захваты могут так же использоваться для кип целлюлозы • 2 гидравлические функции • Максимальное давление:180бар |
• Рекомендуемый поток масла: 25л/мин • C–Минимальная ширина каретки погрузчика • Интегрированная каретка бокового сдвига-в комплекте |
|

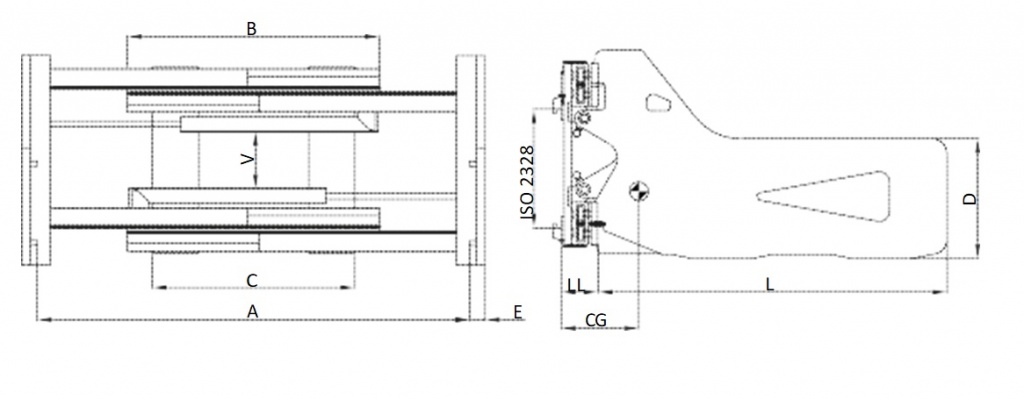

Модель |
Г./под. |
A* |
B |
Лапы LxDxE |
C |
V |
LL |
HCG |
VCG |
Bec |
ISO 2328 |
|
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
HB10-A0T-09 |
1000/500 |
450/1590 |
950 |
900x400x25 |
750 |
195 |
133 |
239 |
211 |
369 |
2 |
|
HB10-A0T-10 |
1000/500 |
450/1590 |
950 |
1000x400x25 |
750 |
195 |
133 |
289 |
211 |
389 |
2 |
|
HB10-A1T-09 |
1000/500 |
550/1790 |
950 |
900x400x25 |
750 |
195 |
133 |
241 |
211 |
375 |
2 |
|
HB10-A1T-10 |
1000/500 |
550/1790 |
950 |
1000x400x25 |
750 |
195 |
133 |
291 |
211 |
394 |
2 |
|
HB14-A0T-09 |
1400/500 |
550/1790 |
950 |
900x400x25 |
750 |
195 |
133 |
241 |
213 |
382 |
2 |
|
HB14-A0T-10 |
1400/500 |
550/1790 |
950 |
1000x400x25 |
750 |
195 |
133 |
290 |
213 |
402 |
2 |
|
HB14-B0T-09 |
1400/500 |
450/1690 |
1050 |
900x400x25 |
750 |
195 |
133 |
235 |
213 |
387 |
2 |
|
HB14-B0T-10 |
1400/500 |
450/1690 |
1050 |
1000x400x25 |
750 |
195 |
133 |
284 |
213 |
412 |
2 |
|
HB14-C0T-09 |
1400/500 |
450/1790 |
1150 |
900x400x25 |
750 |
195 |
133 |
231 |
213 |
402 |
2 |
|
HB14-C0T-10 |
1400/500 |
450/1790 |
1150 |
1000x400x25 |
750 |
195 |
133 |
281 |
213 |
392 |
2 |
|
HB14-C1T-09 |
1400/500 |
650/2190 |
1150 |
900x400x25 |
750 |
195 |
133 |
232 |
213 |
412 |
2 |
|
HB14-C1T-10 |
1400/500 |
650/2190 |
1150 |
1000x400x25 |
750 |
195 |
133 |
282 |
213 |
432 |
2 |
|
HB18-A0T-10 |
1800/500 |
560/1780 |
950 |
1000x400x30 |
750 |
185 |
135 |
256 |
234 |
448 |
2 |
|
HB18-A0T-12 |
1800/500 |
560/1780 |
950 |
1200x400x30 |
750 |
185 |
135 |
303 |
234 |
460 |
2 |
|
HB18-B0T-10 |
1800/500 |
460/1680 |
1050 |
1000x400x30 |
750 |
185 |
135 |
249 |
234 |
446 |
2 |
|
HB18-B0T-12 |
1800/500 |
460/1680 |
1050 |
1200x400x30 |
750 |
185 |
135 |
293 |
234 |
461 |
2 |
|
HB18-C0T-10 |
1800/500 |
560/1980 |
1150 |
1000x400x30 |
750 |
185 |
135 |
243 |
234 |
453 |
2 |
|
HB18-C0T-12 |
1800/500 |
560/1980 |
1150 |
1200x400x30 |
750 |
185 |
135 |
285 |
234 |
485 |
2 |
|
HB18-D0T-10 |
1800/500 |
460/1880 |
1250 |
1000x400x30 |
850 |
185 |
135 |
239 |
234 |
468 |
2 |
|
HB18-D0T-12 |
1800/500 |
460/1880 |
1250 |
1200x400x30 |
850 |
185 |
135 |
276 |
234 |
494 |
2 |
|
HB22-A0T-10 |
2200/500 |
570/1800 |
950 |
1000x400x30 |
750 |
180 |
135 |
249 |
239 |
492 |
2 |
|
HB22-A0T-12 |
2200/500 |
570/1800 |
950 |
1200x400x30 |
750 |
180 |
135 |
275 |
239 |
460 |
2 |
|
HB22-B0T-10 |
2200/500 |
660/2080 |
1050 |
1000x400x30 |
750 |
180 |
135 |
244 |
239 |
457 |
2 |
|
HB22-B0T-12 |
2200/500 |
660/2080 |
1050 |
1200x400x30 |
750 |
180 |
135 |
269 |
239 |
485 |
2 |
|
HB22-C0T-10 |
2200/500 |
560/1980 |
1150 |
1000x400x30 |
750 |
180 |
135 |
241 |
239 |
469 |
2 |
|
HB22-C0T-12 |
2200/500 |
560/1980 |
1150 |
1200x400x30 |
750 |
180 |
135 |
265 |
239 |
494 |
2 |
|
HB22-D0T-10 |
2200/500 |
570/2100 |
1250 |
1000x400x30 |
850 |
180 |
135 |
238 |
239 |
480 |
2 |
|
HB22-D0T-12 |
2200/500 |
570/2100 |
1250 |
1200x400x30 |
850 |
180 |
135 |
261 |
239 |
508 |
2 |
|
HB26-A0T-10 |
2600/500 |
550/1860 |
1050 |
1000x400x30 |
750 |
180 |
137 |
265 |
239 |
470 |
2/3 |
|
HB26-A0T-12 |
2600/500 |
550/1860 |
1050 |
1200x400x30 |
750 |
180 |
137 |
274 |
239 |
492 |
2/3 |
|
HB26-B0T-10 |
2600/500 |
670/2200 |
1150 |
1000x400x30 |
750 |
180 |
137 |
259 |
239 |
484 |
2/3 |
|
HB26-B0T-12 |
2600/500 |
670/2200 |
1150 |
1200x400x30 |
750 |
180 |
137 |
268 |
239 |
509 |
2/3 |
|
HB26-C0T-10 |
2600/500 |
530/2020 |
1250 |
1000x400x30 |
850 |
180 |
137 |
255 |
239 |
497 |
2/3 |
|
HB26-C0T-12 |
2600/500 |
530/2020 |
1250 |
1200x400x30 |
850 |
180 |
137 |
263 |
239 |
522 |
2/3 |
|
HB26-D0T-10 |
2600/500 |
670/2320 |
1320 |
1000x400x30 |
850 |
180 |
137 |
245 |
239 |
505 |
2/3 |
