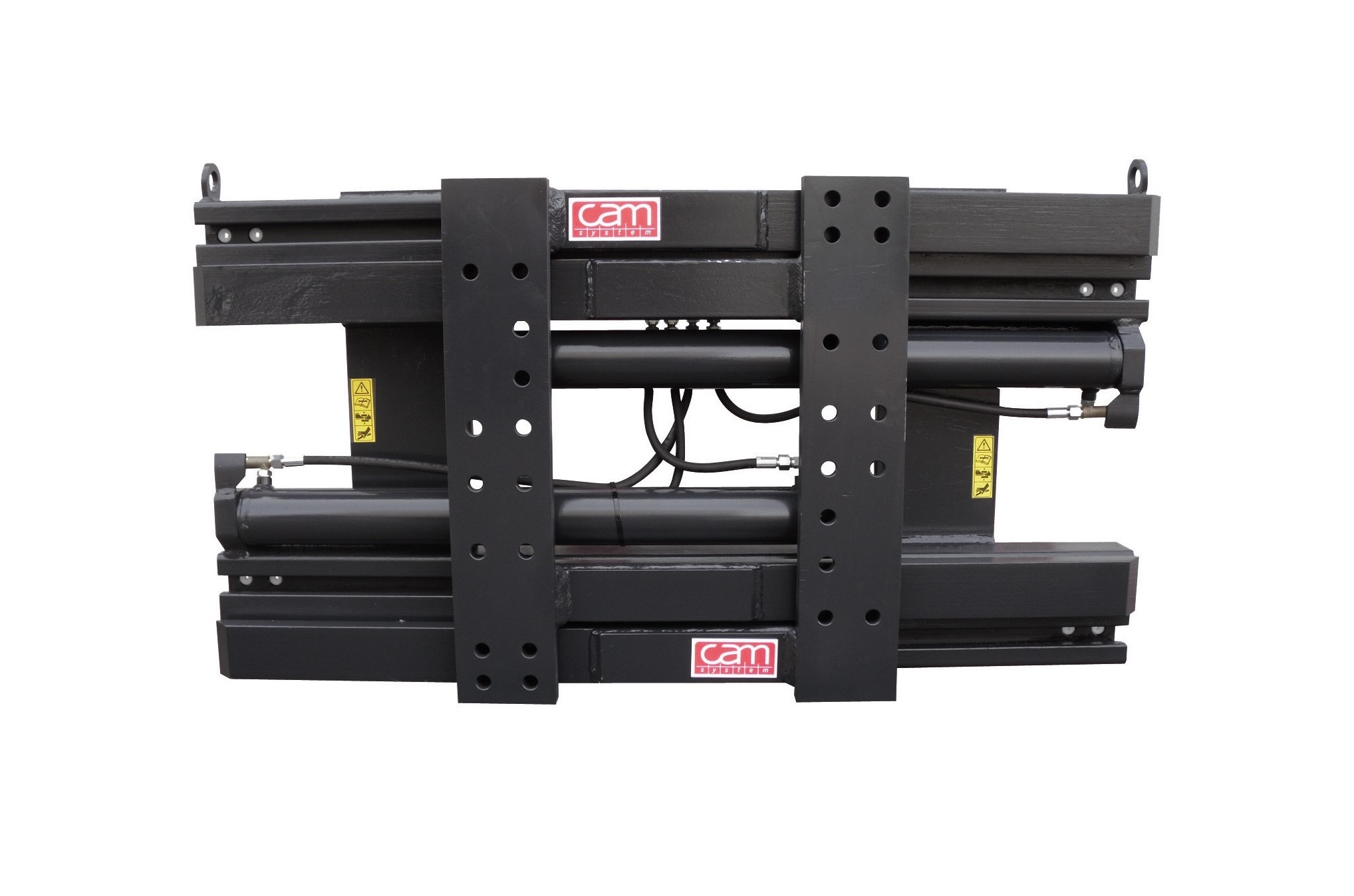

Грузовые захваты
Спецификация
| • 1 гидравлическая функция • Рекомендуемый поток масла: 25л/мин | • Максимальное давление: 180 бар • C–Минимальная ширина каретки погрузчика |
|

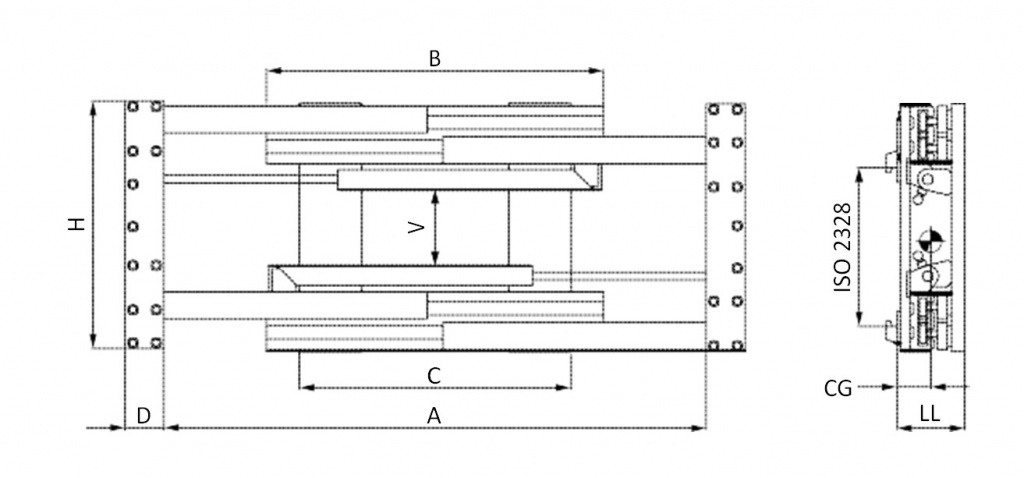

Модель |
Г./под. |
A |
B |
C |
D |
H |
V |
LL |
HCG |
VCG |
Bec |
ISO2328 |
|
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
H10-A0 |
1000/500 |
450/1610 |
870 |
750 |
100 |
635 |
195 |
173 |
80 |
213 |
195 |
2 |
|
H10-B0* |
1000/500 |
360/1500 |
950 |
750 |
100 |
635 |
195 |
173 |
78 |
213 |
205 |
2 |
|
H10-C0* |
1000/500 |
360/1580 |
1050 |
750 |
100 |
635 |
195 |
173 |
77 |
213 |
215 |
2 |
|
H14-A0 |
1400/500 |
450/1610 |
870 |
750 |
100 |
635 |
195 |
173 |
81 |
213 |
210 |
2 |
|
H14-B0 |
1400/500 |
450/1690 |
950 |
750 |
100 |
635 |
195 |
173 |
80 |
213 |
215 |
2 |
|
H14-C0* |
1400/500 |
360/1600 |
1050 |
750 |
100 |
635 |
195 |
173 |
79 |
213 |
220 |
2 |
|
H14-D0 |
1400/500 |
550/1980 |
1150 |
750 |
100 |
635 |
195 |
173 |
80 |
213 |
225 |
2 |
|
H18-A0 |
1800/500 |
480/1700 |
950 |
750 |
100 |
635 |
185 |
176 |
78 |
218 |
215 |
2 |
|
H18-B0 |
1800/500 |
480/1800 |
1050 |
750 |
100 |
635 |
185 |
176 |
79 |
218 |
220 |
2 |
|
H18-B1* |
1800/500 |
360/1580 |
1050 |
750 |
100 |
635 |
185 |
176 |
79 |
218 |
215 |
2 |
|
H18-C0 |
1800/500 |
480/1900 |
1150 |
750 |
100 |
635 |
185 |
176 |
76 |
218 |
224 |
2 |
|
H18-D0* |
1800/500 |
360/1780 |
1250 |
850 |
100 |
635 |
185 |
176 |
76 |
218 |
228 |
2 |
|
H22-A0 |
2200/500 |
450/1700 |
950 |
750 |
100 |
635 |
180 |
180 |
82 |
218 |
215 |
2 |
|
H22-B0* |
2200/500 |
320/1540 |
1050 |
750 |
100 |
635 |
180 |
180 |
80 |
218 |
220 |
2 |
|
H22-C0 |
2200/500 |
450/1900 |
1150 |
750 |
100 |
635 |
180 |
180 |
78 |
218 |
225 |
2 |
|
H22-D0* |
2200/500 |
320/1740 |
1250 |
750 |
100 |
635 |
180 |
180 |
76 |
218 |
230 |
2 |
|
H26-A0 |
2600/500 |
450/1800 |
1050 |
850 |
120 |
635 |
180 |
180 |
80 |
218 |
225 |
2/3 |
|
H26-B0* |
2600/500 |
320/1640 |
1150 |
850 |
120 |
635 |
180 |
180 |
79 |
218 |
230 |
2/3 |
|
H26-C0 |
2600/500 |
450/2000 |
1250 |
850 |
120 |
635 |
180 |
180 |
76 |
218 |
235 |
2/3 |
|
H26-D0* |
2600/500 |
320/1810 |
1320 |
850 |
120 |
635 |
180 |
180 |
76 |
218 |
242 |
2/3 |
|
H30-A0* |
3000/500 |
320/1620 |
1150 |
850 |
120 |
745 |
175 |
210 |
92 |
241 |
525 |
3 |
|
H30-B0 |
3000/500 |
450/1970 |
1250 |
850 |
120 |
745 |
175 |
210 |
90 |
241 |
545 |
3 |
|
H30-C0* |
3000/500 |
320/1780 |
1320 |
850 |
120 |
745 |
175 |
210 |
80 |
241 |
550 |
3 |
|
H35-A0* |
3500/500 |
320/1620 |
1150 |
900 |
120 |
745 |
170 |
210 |
93 |
241 |
530 |
3 |
|
H35-B0* |
3500/500 |
320/1790 |
1320 |
1000 |
120 |
745 |
170 |
210 |
91 |
241 |
565 |
3 |
|
H35-C0 |
3500/500 |
450/2180 |
1450 |
1000 |
120 |
745 |
170 |
210 |
90 |
241 |
580 |
3 |
|
H40-A0* |
4000/500 |
320/1620 |
1150 |
900 |
150 |
745 |
165 |
215 |
95 |
241 |
540 |
3 |
|
H40-B0 |
4000/500 |
450/2050 |
1320 |
1000 |
150 |
745 |
165 |
215 |
93 |
241 |
570 |
3 |
|
H40-C0 |
4000/500 |
450/2180 |
1450 |
1000 |
150 |
745 |
165 |
215 |
92 |
241 |
595 |
3 |
|
H45-A0 |
3800/600 |
350/1970 |
1450 |
1050 |
150 |
820 |
210 |
220 |
98 |
274 |
621 |
4 |
|
H45-B0 |
3800/600 |
450/2320 |
1600 |
1050 |
150 |
820 |
210 |
220 |
96 |
274 |
661 |
4 |
|
H60-A0 |
5000/600 |
380/2200 |
1600 |
1050 |
180 |
920 |
150 |
265 |
110 |
274 |
960 |
4 |
|
H60-B0 |
5000/600 |
380/2400 |
1800 |
1050 |
180 |
920 |
150 |
265 |
110 |
274 |
1020 |
4 |
