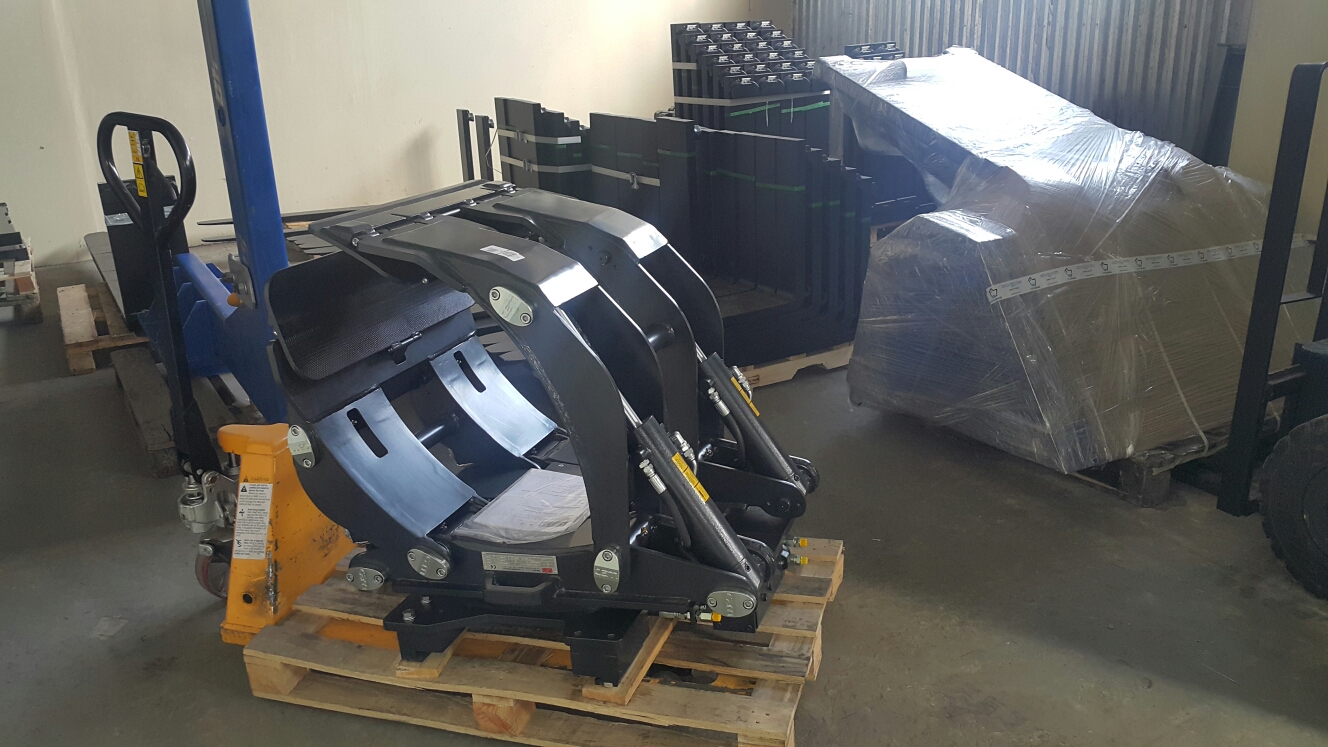

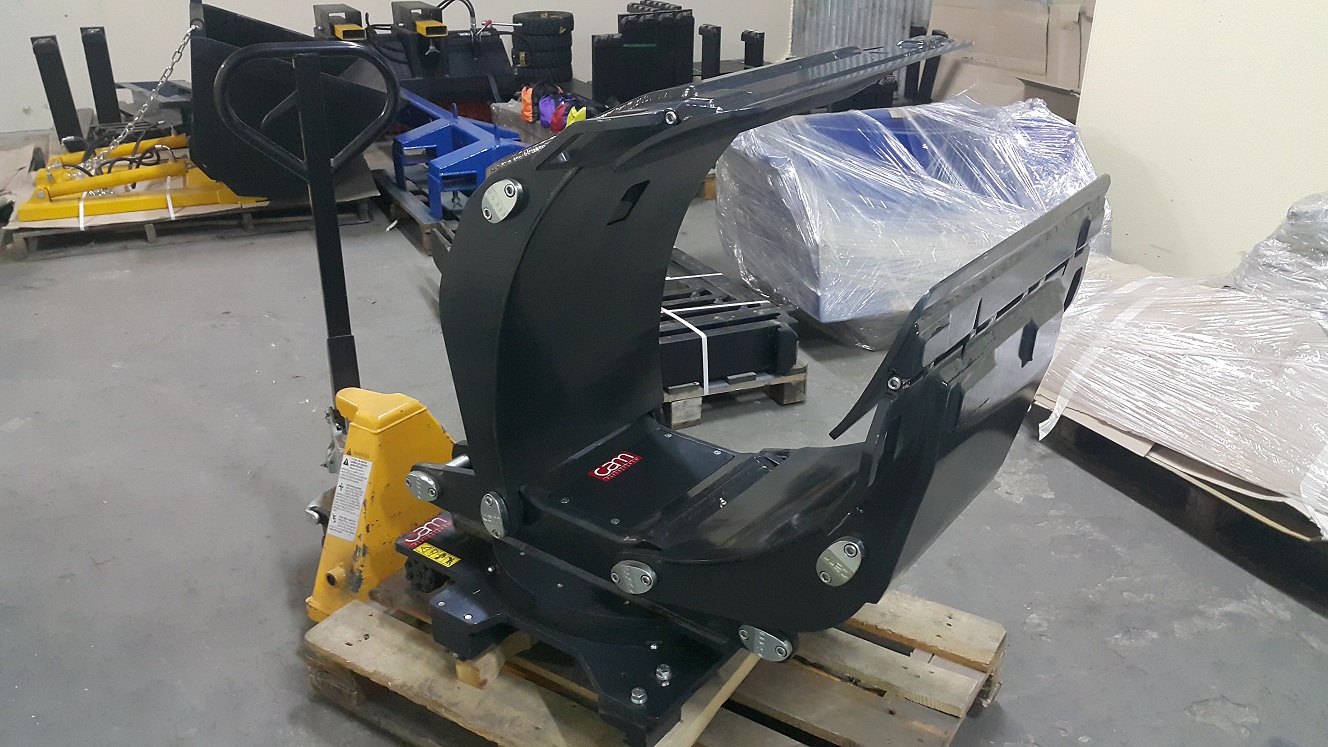

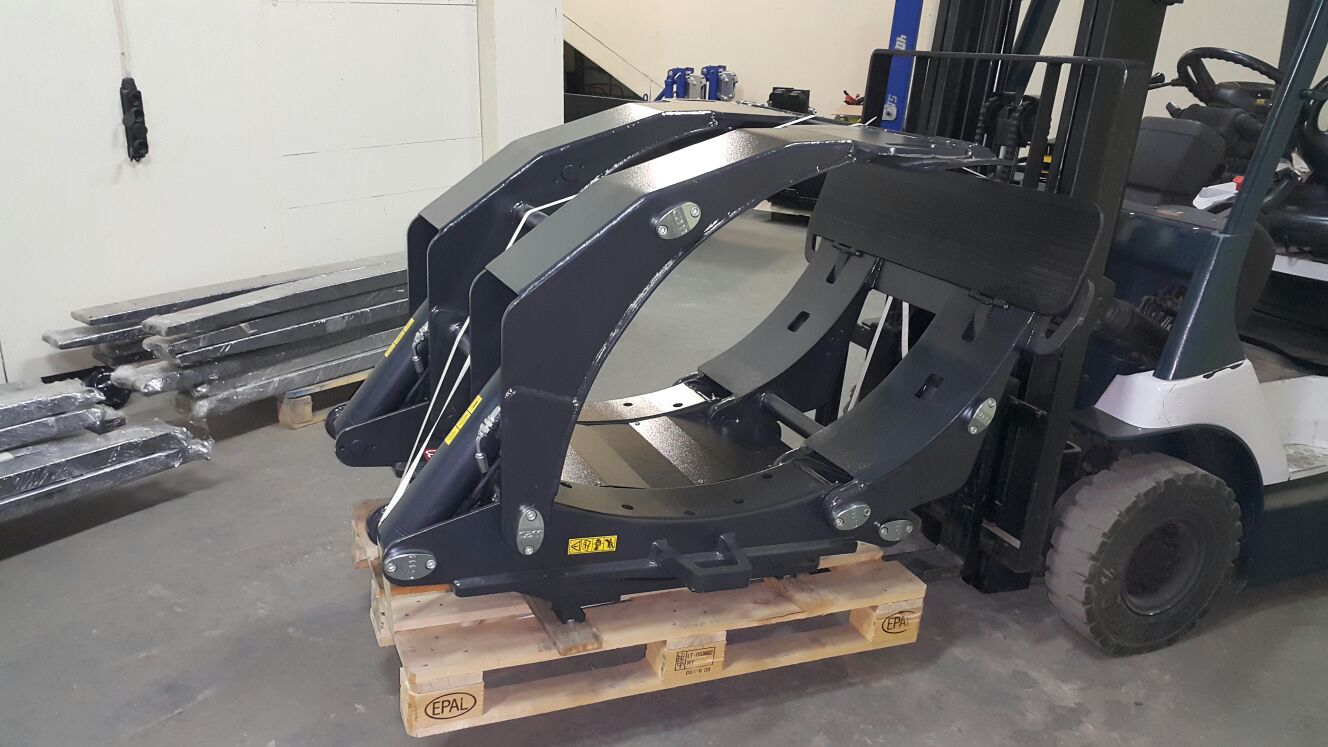

Захваты для рулонов с вращением 360 градусов на погрузчики от 1.5 - 3,5 тонн
Спецификация
| •
2 гидравлические функции • Максимальное давление: 160 бар • Рекомендуемый поток масла: 30 л/мин | •
Параметры LL и CG указаны в мм
/ угол монтажа 2° • F–расстояние до земли • G–ширина контактных накладок |
|
Модель |
Г./под. |
A |
B |
C |
DxE |
F |
G |
LL |
VCG |
HCG |
Bec360° |
ISO2328 |
|
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
CR1050* |
1000/500 |
450/1000 |
990 |
330 |
720x230 |
- |
- |
195 |
292 |
200 |
390 |
2 |
|
CR1355* |
1300/550 |
250/1100 |
890 |
690 |
720x230 |
75 |
770 |
205 |
297 |
230 |
545 |
2 |
|
CR1265* |
1200/650 |
250/1300 |
1190 |
675 |
720x250 |
75 |
770 |
250 |
307 |
265 |
525 |
2 |
|
CR1266 |
1200/650 |
450/1300 |
1190 |
675 |
720x250 |
75 |
770 |
250 |
305 |
265 |
530 |
2 |
|
CR1276 |
1200/750 |
450/1500 |
1190 |
675 |
720x250 |
75 |
770 |
175 |
292 |
290 |
550 |
2 |
|
CR1281 |
1200/800 |
450/1600 |
1190 |
675 |
720x250 |
75 |
770 |
175 |
297 |
313 |
680 |
2 |
|
CR1655* |
1600/550 |
250/1100 |
890 |
690 |
820x250 |
75 |
870 |
205 |
297 |
215 |
560 |
2 |
|
CR1656 |
1600/550 |
450/1100 |
890 |
690 |
820x250 |
75 |
870 |
205 |
297 |
215 |
560 |
2 |
|
CR1665* |
1600/650 |
250/1300 |
1190 |
705 |
820x250 |
85 |
870 |
250 |
297 |
235 |
630 |
2 |
|
CR1666 |
1600/650 |
500/1300 |
1190 |
705 |
820x250 |
85 |
870 |
250 |
297 |
235 |
630 |
2 |
|
CR1865* |
1800/650 |
250/1300 |
900 |
850 |
820x250 |
155 |
870 |
210 |
292 |
245 |
635 |
2 |
|
CR1866 |
1800/650 |
500/1300 |
900 |
850 |
820x250 |
155 |
870 |
210 |
292 |
245 |
635 |
2 |
|
CR1680* |
1600/800 |
250/1600 |
1190 |
850 |
820x250 |
155 |
870 |
175 |
297 |
305 |
711 |
2/3 |
|
CR1681 |
1600/800 |
500/1600 |
1190 |
850 |
820x250 |
155 |
870 |
175 |
297 |
305 |
705 |
2/3 |
|
CR2265* |
2200/650 |
250/1300 |
900 |
850 |
820x250 |
155 |
870 |
210 |
317 |
245 |
640 |
2 |
|
CR2266 |
2200/650 |
500/1300 |
900 |
850 |
820x250 |
155 |
870 |
210 |
317 |
245 |
640 |
2 |
|
CR2070* |
2000/700 |
250/1400 |
900 |
850 |
820x250 |
155 |
870 |
195 |
312 |
250 |
670 |
3 |
|
CR2071 |
2000/700 |
500/1400 |
900 |
850 |
820x250 |
155 |
870 |
195 |
312 |
250 |
670 |
3 |
|
CR2565* |
2500/650 |
280/1300 |
900 |
850 |
1020x250 |
155 |
1070 |
195 |
411 |
280 |
733 |
3 |
|
CR2566 |
2500/650 |
500/1300 |
900 |
850 |
1020x250 |
155 |
1070 |
195 |
411 |
280 |
733 |
3 |
|
CR2080* |
2000/800 |
250/1600 |
1190 |
850 |
1020x250 |
155 |
1070 |
175 |
416 |
325 |
737 |
3 |
|
CR2081 |
2000/800 |
500/1600 |
1190 |
850 |
1020x250 |
155 |
1070 |
162 |
416 |
300 |
737 |
3 |
|
CR10105* |
1000/1050 |
650/2100 |
1300 |
680 |
1200x280 |
155 |
1070 |
190 |
409 |
430 |
830 |
3 |
|
CR3065* |
3000/650 |
250/1300 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
394 |
260 |
765 |
3/4 |
|
CR3066 |
3000/650 |
450/1300 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
396 |
260 |
765 |
3/4 |
|
CR2580* |
2500/800 |
250/1600 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
404 |
330 |
945 |
3/4 |
|
CR2581 |
2500/800 |
500/1600 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
404 |
330 |
940 |
3/4 |
|
CR2880* |
2800/800 |
250/1600 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
403 |
320 |
970 |
3/4 |
|
CR2881 |
2800/800 |
500/1600 |
900 |
934 |
1020x250 |
175 |
1070 |
200 |
402 |
321 |
965 |
3/4 |
|
CR2390* |
2300/900 |
300/1830 |
1100 |
934 |
1020x250 |
175 |
1070 |
200 |
411 |
360 |
930 |
3/4 |
|
CR2391 |
2300/900 |
550/1830 |
1100 |
934 |
1020x250 |
175 |
1070 |
200 |
411 |
360 |
930 |
3/4 |
|
CR2590* |
2500/900 |
300/1830 |
1100 |
934 |
1020x250 |
175 |
1070 |
200 |
414 |
360 |
1070 |
3/4 |
|
CR2591 |
2500/900 |
550/1830 |
1100 |
934 |
1020x250 |
175 |
1070 |
200 |
414 |
360 |
1070 |
3/4 |
