Грузовые захваты с вращением 360 градусов
Спецификация
|
• 2 гидравлические функции
• Максимальное давление: 180 бар |
• Рекомендуемый поток масла: 25 л/мин
• C–Минимальная ширина каретки погрузчика |
|

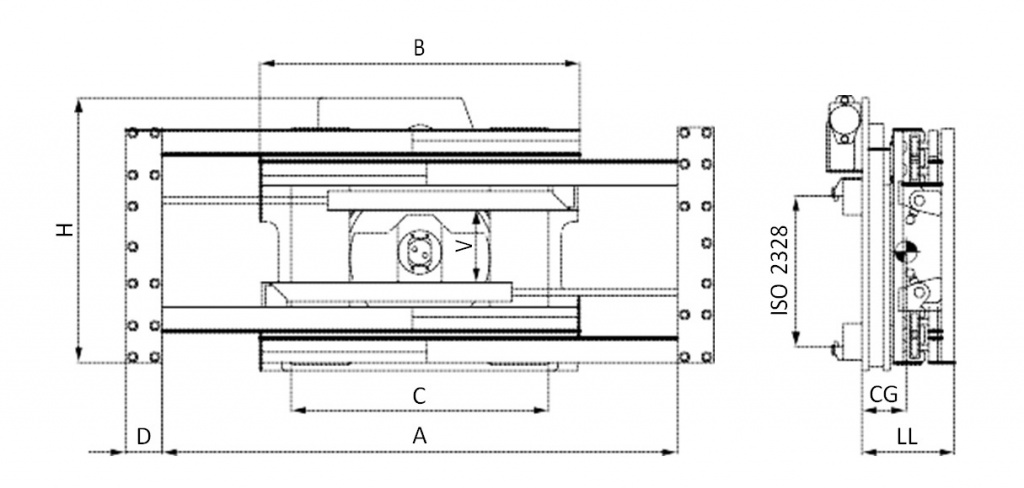

Модель |
Г./под. |
A |
B |
C |
D |
H |
V |
LL |
HCG |
VCG |
Bec |
ISO 2328 |
|
кг/мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
мм |
кг |
|
|
|
HR10-A0 |
1000/500 |
450/1610 |
870 |
750 |
100 |
635 |
195 |
298 |
128 |
312 |
345 |
2 |
|
HR10-B0* |
1000/500 |
360/1500 |
950 |
750 |
100 |
635 |
195 |
298 |
131 |
312 |
355 |
2 |
|
HR10-C0* |
1000/500 |
360/1580 |
1050 |
750 |
100 |
635 |
195 |
298 |
135 |
312 |
365 |
2 |
|
HR14-A0 |
1400/500 |
450/1610 |
870 |
750 |
100 |
635 |
195 |
298 |
129 |
307 |
360 |
2 |
|
HR14-B0 |
1400/500 |
450/1690 |
950 |
750 |
100 |
635 |
195 |
298 |
132 |
307 |
365 |
2 |
|
HR14-C0* |
1400/500 |
360/1600 |
1050 |
750 |
100 |
635 |
195 |
298 |
136 |
307 |
370 |
2 |
|
HR14-D0 |
1400/500 |
550/1980 |
1150 |
750 |
100 |
635 |
195 |
298 |
139 |
307 |
375 |
2 |
|
HR18-A0 |
1800/500 |
480/1700 |
950 |
750 |
100 |
635 |
185 |
301 |
133 |
307 |
365 |
2 |
|
HR18-B0 |
1800/500 |
480/1800 |
1050 |
750 |
100 |
635 |
185 |
301 |
137 |
307 |
370 |
2 |
|
HR18-B1* |
1800/500 |
360/1580 |
1050 |
750 |
100 |
635 |
185 |
301 |
137 |
307 |
368 |
2 |
|
HR18-C0 |
1800/500 |
480/1900 |
1150 |
750 |
100 |
635 |
185 |
301 |
139 |
307 |
380 |
2 |
|
HR18-D0* |
1800/500 |
360/1780 |
1250 |
850 |
100 |
635 |
185 |
301 |
141 |
307 |
389 |
2 |
|
HR22-A0 |
2200/500 |
450/1700 |
950 |
750 |
100 |
635 |
180 |
301 |
134 |
302 |
369 |
2 |
|
HR22-B0* |
2200/500 |
320/1540 |
1050 |
750 |
100 |
635 |
180 |
301 |
138 |
302 |
375 |
2 |
|
HR22-C0 |
2200/500 |
450/1900 |
1150 |
750 |
100 |
635 |
180 |
301 |
140 |
302 |
382 |
2 |
|
HR22-D0* |
2200/500 |
320/1740 |
1250 |
750 |
100 |
635 |
180 |
301 |
142 |
302 |
388 |
2 |
|
HR26-A0 |
2600/500 |
450/1800 |
1050 |
900 |
120 |
635 |
180 |
307 |
143 |
297 |
440 |
2/3 |
|
HR26-B0* |
2600/500 |
320/1640 |
1150 |
900 |
120 |
635 |
180 |
307 |
145 |
397 |
447 |
2/3 |
|
HR26-C0 |
2600/500 |
450/2000 |
1250 |
900 |
120 |
635 |
180 |
307 |
147 |
397 |
456 |
2/3 |
|
HR26-D0* |
2600/500 |
320/1810 |
1320 |
900 |
120 |
635 |
180 |
307 |
150 |
397 |
468 |
2/3 |
|
HR30-A0* |
3000/500 |
320/1620 |
1150 |
900 |
120 |
745 |
175 |
337 |
147 |
325 |
725 |
3 |
|
HR30-B0 |
3000/500 |
450/1970 |
1250 |
900 |
120 |
745 |
175 |
337 |
151 |
325 |
740 |
3 |
|
HR30-C0* |
3000/500 |
320/1780 |
1320 |
900 |
120 |
745 |
175 |
337 |
152 |
325 |
752 |
3 |
|
HR35-A0* |
3500/500 |
320/1620 |
1150 |
1050 |
120 |
745 |
170 |
350 |
162 |
328 |
795 |
3 |
|
HR35-B0* |
3500/500 |
320/1790 |
1320 |
1050 |
120 |
745 |
170 |
350 |
165 |
328 |
810 |
3 |
|
HR35-C0 |
3500/500 |
450/2180 |
1450 |
1050 |
120 |
745 |
170 |
350 |
169 |
328 |
827 |
3 |
|
HR40-A0* |
4000/500 |
320/1620 |
1150 |
1050 |
150 |
745 |
165 |
355 |
165 |
328 |
812 |
3 |
|
HR40-B0 |
4000/500 |
450/2050 |
1320 |
1050 |
150 |
745 |
165 |
355 |
171 |
328 |
821 |
3 |
|
HR40-C0 |
4000/500 |
450/2180 |
1450 |
1050 |
150 |
745 |
165 |
355 |
177 |
328 |
831 |
3 |
|
HR45-A0 |
3800/600 |
350/1970 |
1450 |
1230 |
150 |
820 |
210 |
380 |
189 |
338 |
1080 |
4 |
|
HR45-B0 |
3800/600 |
450/2320 |
1600 |
1230 |
150 |
820 |
210 |
380 |
197 |
338 |
1125 |
4 |
